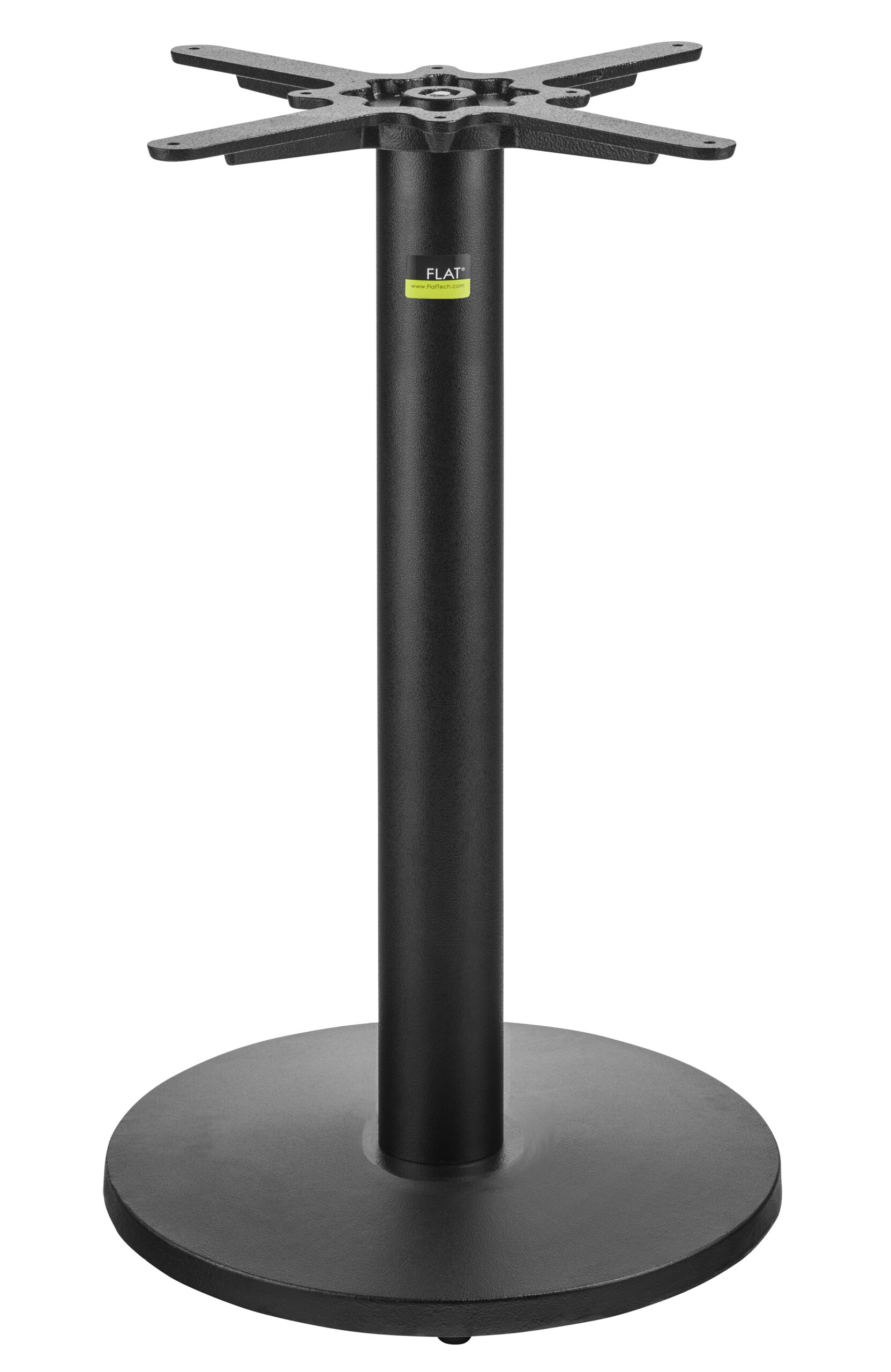

FLAT-AUTO-ADJUST-UR17-Table-Base_2021-08-17-194038_iztc

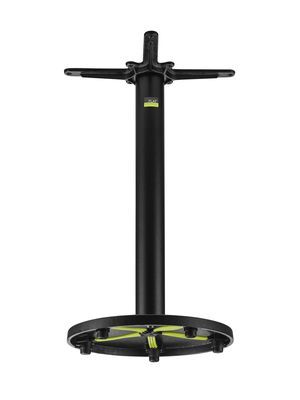

FLAT-AUTO-ADJUST-UR17-Table-Base-Tilted_604a916ee80a7f229fc6770f351f06c4

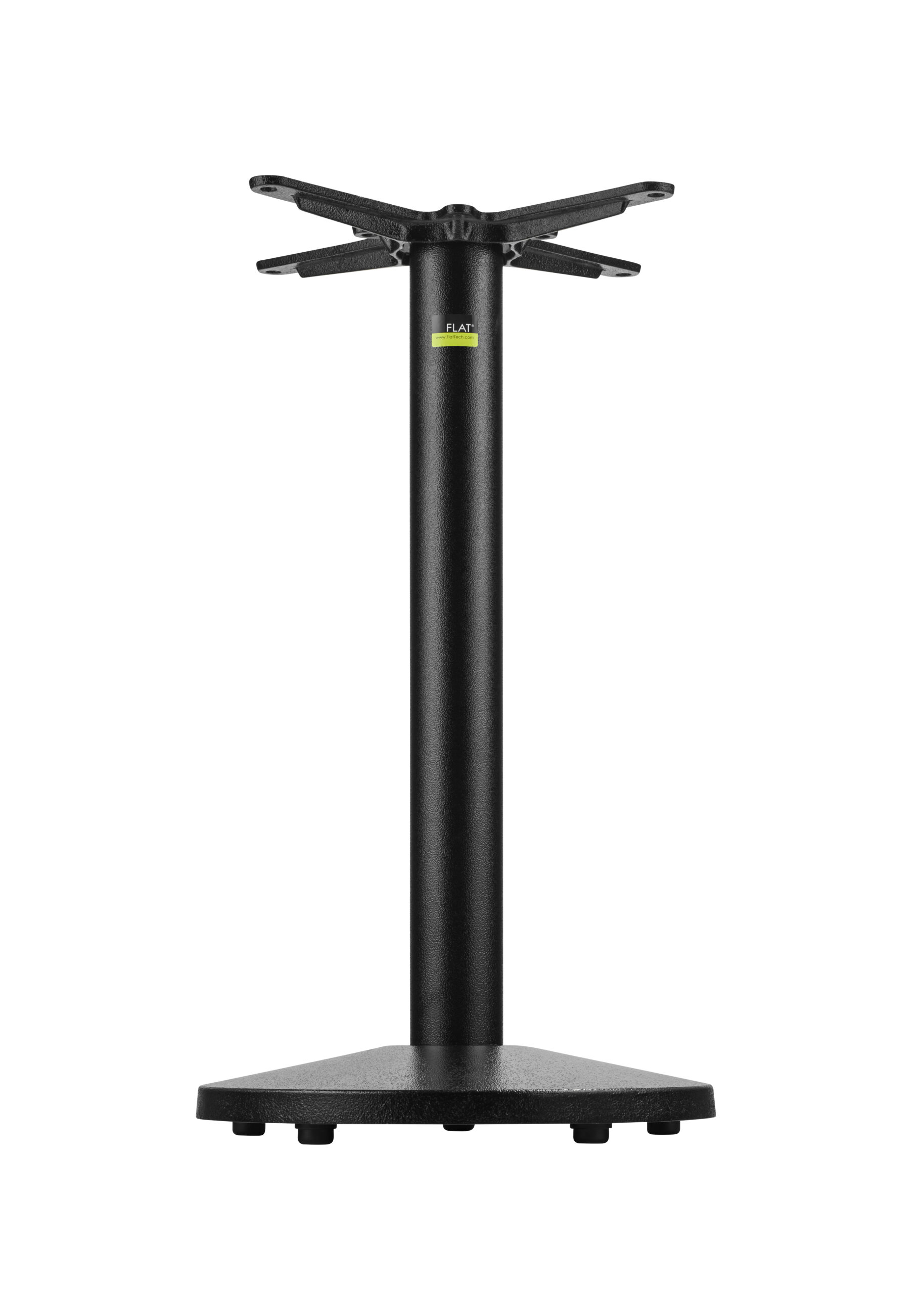

FLAT-AUTO-ADJUST-UR17-Table-Base-Level_2021-08-17-194038_pwde

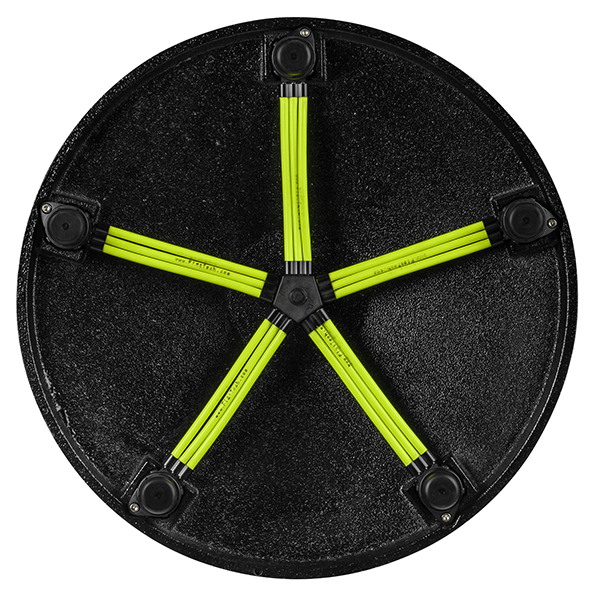

FLAT-AUTO-ADJUST-UR17-Table-Base-Underside_2021-08-17-194038_obqh
FLAT-AUTO-ADJUST-UR17-Table-Base_2021-08-17-194038_iztc
image description
FLAT-AUTO-ADJUST-UR17-Table-Base-Tilted_604a916ee80a7f229fc6770f351f06c4
FLAT-AUTO-ADJUST-UR17-Table-Base-Level_2021-08-17-194038_pwde
FLAT-AUTO-ADJUST-UR17-Table-Base-Underside_2021-08-17-194038_obqh

AUTO-ADJUST UR17 Table Base

Our smallest table base is found in restaurants around the world. It is ideal for establishments with limited space that require smaller tables.

  • Its 17″ span is ideal for accommodating smaller table tops
  • Can accommodate table top sizes up to 650mm/26in (round)
  • All FLAT table bases contain our PAD technology for stabilizing tables and aligning table tops
  • Part of the UR family of bases – larger bases with 22″ or 30″ diameters are available
  • Zinc coating (to help protect against weathering) and custom color options are available on request and subject to minimum orders.

Product Enquiry

bg-abstract

The FLAT Difference

FLAT’s multi-award-winning table bases are entirely unique in that they can be automatically stabilized whenever they are moved, and in addition, allow operators to perfectly align multiple table tops.

All FLAT table bases contain our patented, hydraulic PAD stabilization technology. With over 40 self-stabilizing table base styles and configurations to choose from, whatever your decor or theme, you can keep customers happy with stable, aligned tables.

AUTO-ADJUST UR17 Table Base Specifications

UR17
Height 720mm/28.35in
Base Spread 425mm/17in
Weight 12.7kg/28lb
Top Plate Size 330mm/13in
Material/Finish Cast Iron/Textured Finish
Max Tabletop Weight 18kg/40lb
Max Tabletop Size Square 600mm/24in
Max Tabletop Size Round 650mm/26in
Post/Column Width 76mm/3in
Product Code CT3006
