AUTO-ADJUST SX26 Black Bar Height Table Base

More SX26 Options

Our first aluminum, stackable table base, is now available in bar height. This black version sits discreetly on indoor or outdoor dining or bar areas. Our unique interlocking base design and flip top mechanism allows restaurants, cafes and bars to store tables away after hours with minimal space taken.

  • Ideal for indoor or outdoor use (we recommend our Black and EP versions for coastal areas)
  • Able to accommodate table tops up to 750mm/30in (round) or 650mm/26in (square)
  • Available in polished, black and EP (grey) finishes
  • Contains our automatic PAD technology for outstanding stability and alignment of table tops
Find a Dealer
Product Enquiry

Product Enquiry

Spec Sheet
Demo Video
bg-abstract

The FLAT Difference

FLAT’s multi-award-winning table bases are entirely unique in that they can be automatically stabilized whenever they are moved, and in addition, allow operators to perfectly align multiple table tops.

All FLAT table bases contain our patented, hydraulic PAD stabilization technology. With over 40 self-stabilizing table base styles and configurations to choose from, whatever your decor or theme, you can keep customers happy with stable, aligned tables.

Our Technology

AUTO-ADJUST SX26 Black Bar Height Table Base Specifications

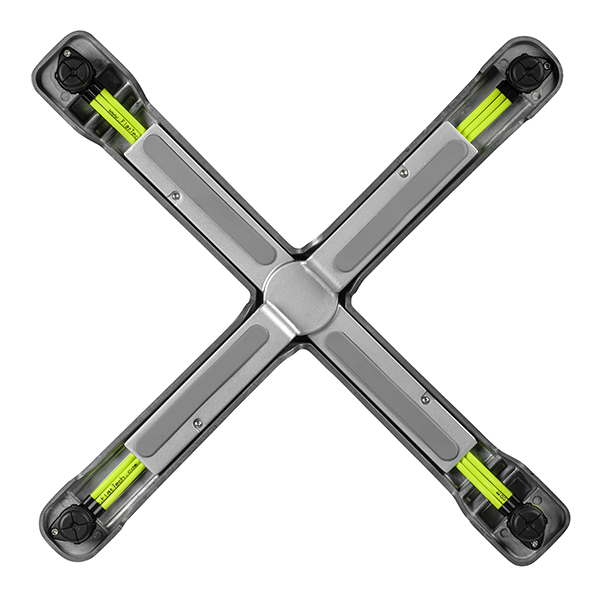

SX26-1
Height 1035mm/40.75in
Base Span 670mm/26in
Base Spread 476mm / 18.75in
Weight 6.4Kg/14.1lb (7.6Kg/16.8lb inc optional weight)
Top Plate Size 375mm/15in
Material/Finish Aluminium/EP Grey or Black powder coat or Polished
Max Tabletop Weight 8Kg/17.5lb
Max Tabletop Size Square 650mm/26in
Max Tabletop Size Round 750mm/30in
Post/Column Width 65mm/2.56in
Product Code CT4334
