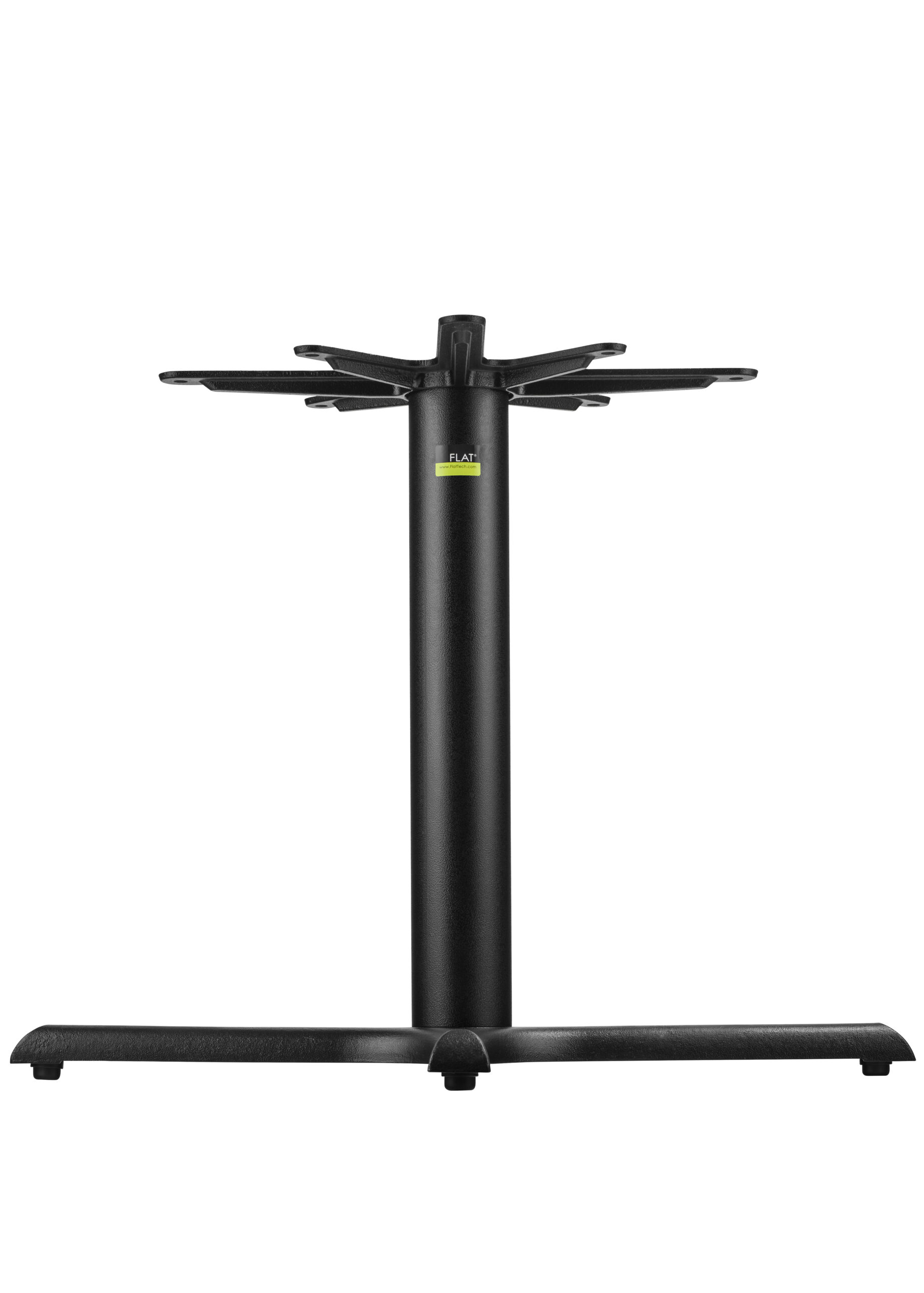

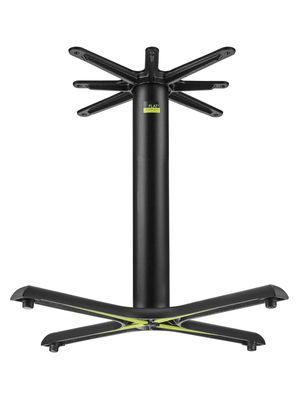

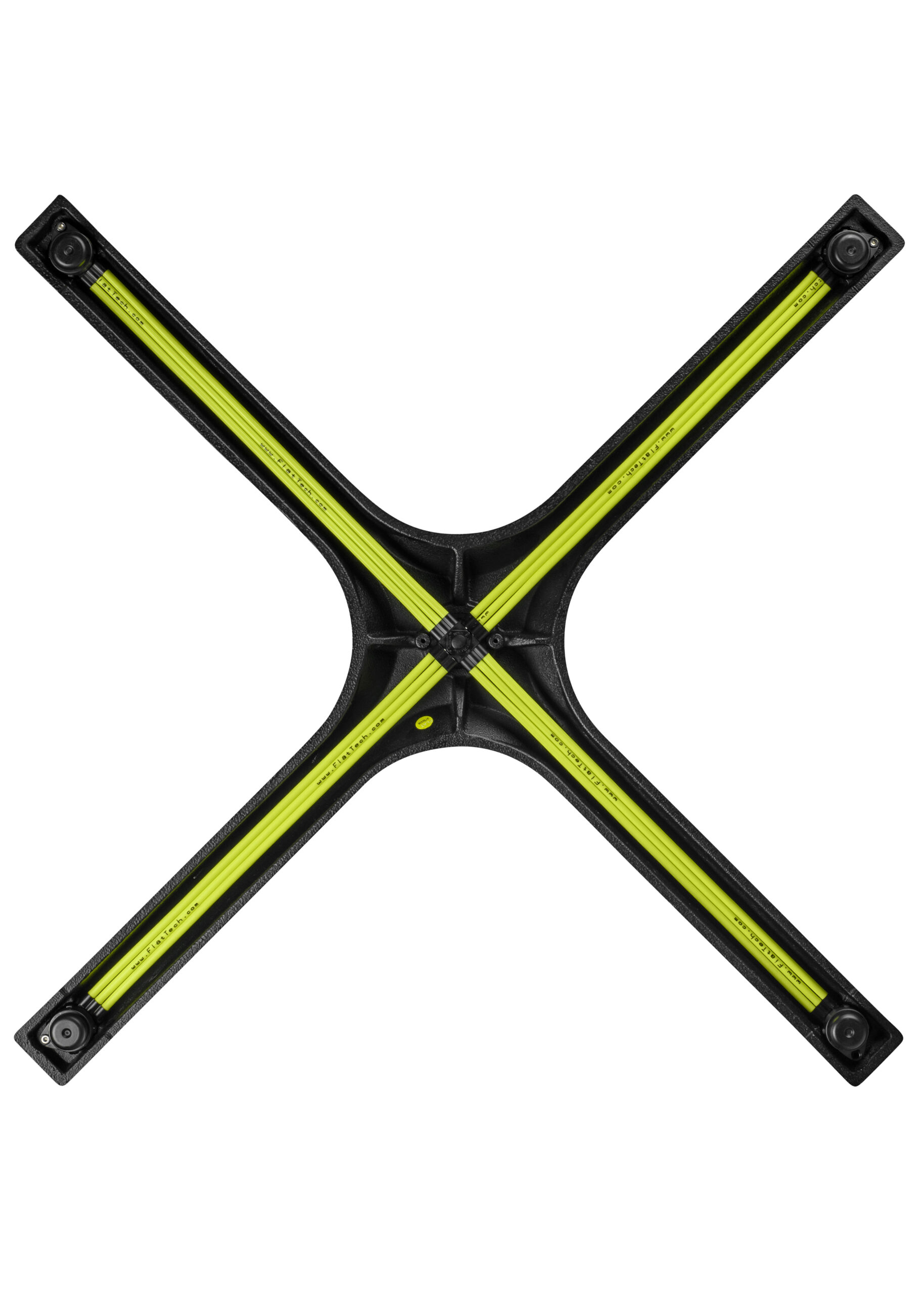

AUTO-ADJUST KX36 Table Base

More KX36 Options

Our new AUTO-ADJUST KX36 is ideal for accommodating large table tops. The cast iron, 36″ base comes with a 4″ post and oversized 17″ top plate.

  • Our largest X-shaped table base
  • Offers unparalleled stability, even with larger table tops (to 1500mm/60in)
  • Perfect for restaurants, bars and venues that regularly cater to large groups
  • All FLAT table bases contain our PAD technology for stabilized tables and aligning table tops
  • Bar height and height-adjustable models also available
  • Zinc coating (to help protect against weathering) and custom color options are available on request and subject to minimum orders
Find a Dealer
Product Enquiry

Product Enquiry

Spec Sheet
Assembly
Demo Video
bg-abstract

The FLAT Difference

FLAT’s multi-award-winning table bases are entirely unique in that they can be automatically stabilized whenever they are moved, and in addition, allow operators to perfectly align multiple table tops.

All FLAT table bases contain our patented, hydraulic PAD stabilization technology. With over 40 self-stabilizing table base styles and configurations to choose from, whatever your decor or theme, you can keep customers happy with stable, aligned tables.

Our Technology

AUTO-ADJUST KX36 Table Base Specifications

KX36
Height 720mm/28.35in
Base Span 915mm/36in
Base Spread 680mm/27in
Weight 20.3kg/44.6lb
Top Plate Size 445mm/17in
Material/Finish Cast Iron/Textured Finish
Max Tabletop Weight 25kg/55lb
Max Tabletop Size Square 1200mm/47in
Max Tabletop Size Round 1500mm/60in
Post/Column Width 102mm/4in
Product Code CT2021
