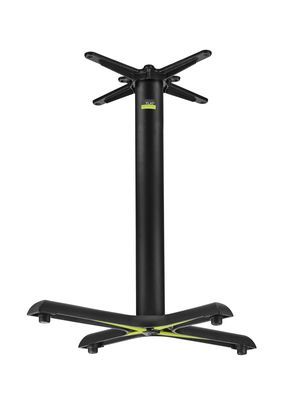

AUTO-ADJUST KX2230 Table Base

More KX2230 Options

Our latest addition to the popular KX range, the AUTO-ADJUST KX2230 is ideal for rectangular table tops.

  • Designed for operators wanting to use rectangular or oval-shaped table tops
  • A familiar cast iron design which looks at home in most environments
  • All FLAT table bases contain our PAD technology for stabilizing tables and aligning table tops
  • Bar height and height-adjustable models also available
  • Zinc coating (to help protect against weathering) and custom color options are available on request and subject to minimum orders.
Find a Dealer
Product Enquiry

Product Enquiry

Spec Sheet
Assembly
Demo Video
bg-abstract

The FLAT Difference

FLAT’s multi-award-winning table bases are entirely unique in that they can be automatically stabilized whenever they are moved, and in addition, allow operators to perfectly align multiple table tops.

All FLAT table bases contain our patented, hydraulic PAD stabilization technology. With over 40 self-stabilizing table base styles and configurations to choose from, whatever your decor or theme, you can keep customers happy with stable, aligned tables.

Our Technology

AUTO-ADJUST KX2230 Table Base Specifications

KX2230
Height 720mm/28.35in
Base Span 560mm x 750mm - 22in x 30in
Base Spread 505mm/20in
Weight 12kg/26.4lb
Top Plate Size 330mm/13in
Material/Finish Cast Iron/Textured Finish
Max Tabletop Weight 16kg/35lb
Max Tabletop Size Square 750mm x 900mm - 30in x 36in
Post/Column Width 76mm/3in
Product Code CT2020
