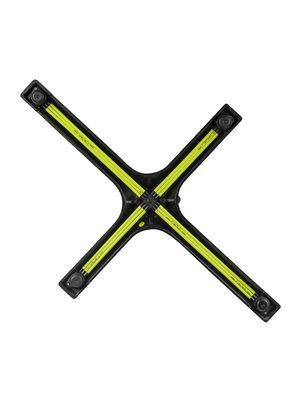

FLAT-AUTO-ADJUST-KX2230-Table-Base-Underside_604a916ee80a7f229fc6770f351f06c4
Example-Height-Adjustment-small_2021-08-12-213931_sqtm
Lever-and-Safety-Pin-small_2021-08-12-213931_iwpz
AUTO-ADJUST-KX2230-PAD_2021-08-12-213931_aflz

AUTO-ADJUST KX2230 Table Base (with Height-Adjustable Pneumatic Post)

More KX2230 Options

Add our height adjustable pneumatic post to our KX2230 table base and cater for customers at different heights with the press of a lever.

  • Adjust your table heights with the squeeze of a lever located underneath the table top
  • Save money – no need to buy multiple tables of different heights
  • Reduce table setup times and accommodate your customers’ needs in seconds
  • Accommodate customers with accessibility requirements
  • Generate sales by adapting your operation for different events
  • Tested by FIRA International
  • All FLAT table bases contain our PAD technology so your tables will remain stable and help you align any adjoining tabletops.
Find a Dealer
Product Enquiry

Product Enquiry

Spec Sheet
Demo Video
bg-abstract

The FLAT Difference

FLAT’s multi-award-winning table bases are entirely unique in that they can be automatically stabilized whenever they are moved, and in addition, allow operators to perfectly align multiple table tops.

All FLAT table bases contain our patented, hydraulic PAD stabilization technology. With over 40 self-stabilizing table base styles and configurations to choose from, whatever your decor or theme, you can keep customers happy with stable, aligned tables.

Our Technology

AUTO-ADJUST KX2230 Table Base (with Height-Adjustable Pneumatic Post) Specifications

Adjusting-the-Table-2
Height (adjustable) Min: 701mm / 27.6in to Max: 1035mm / 40.75in
Base Span 560mm x 750mm - 22in x 30in
Base Spread 505mm/20in
Weight 14kg/30.7lb
Top Plate Size 308mm/12in
Material/Finish Cast Iron/Textured Finish
Max Tabletop Weight 16kg/35lb
Max Tabletop Size (Rectangular) 600mm x 760mm / 24in x 30in
Post/Column Width 76mm/3in
Product Code CT2069
